Thoroughly tempered, excellent performance

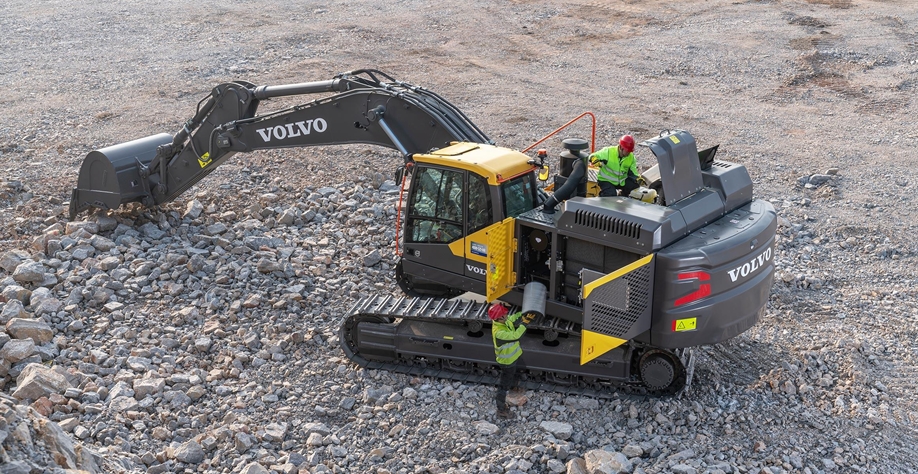

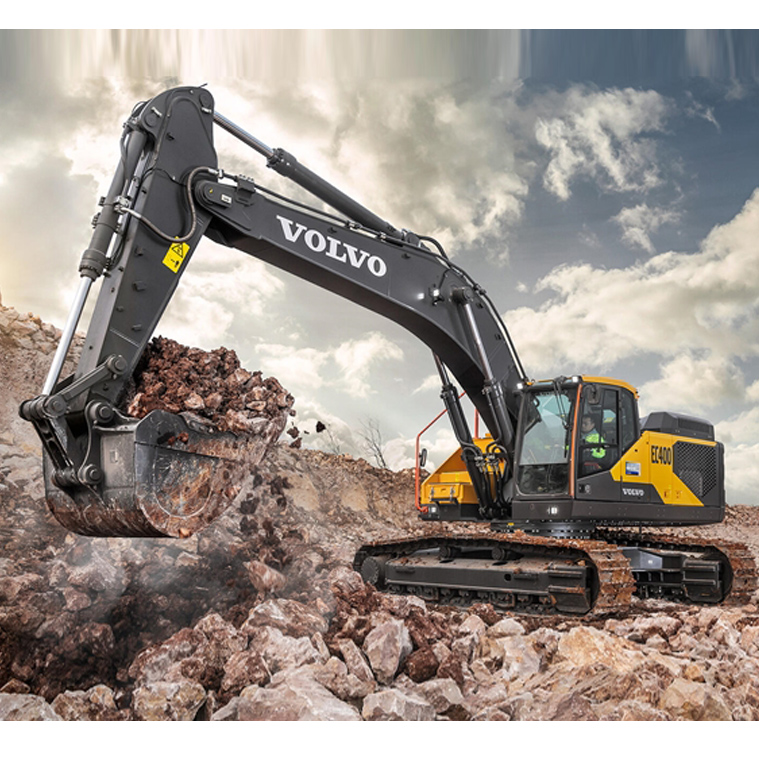

This EC400 excavator is more environmentally friendly and efficient. It is equipped with a technologically lean and powerful Volvo D13 engine, which fully complies with the National IV standard. Adhering to the successful advantages of the previous generation, the overall quality of this crawler excavator has been upgraded again, with fuel efficiency increased by about 10% and productivity increased by about 16%.
 Quality comes from design Durable design, convenient maintenance and comprehensive safety features make this high-quality machine. |
Productivity has increased by leaps and bounds The bucket size has increased, and productivity has increased by about 16%. |
 Higher fuel efficiency Thanks to a series of efficiency-enhancing technologies, fuel efficiency is about 10% higher than the previous generation. |
| Working weight | 40,170 - 42,800 Kg |
|---|---|
| Total power | 253 kW |
| Maximum power speed | 1,600 rpm |
| Bucket capacity | 2 - 2.4 m³ |
| Lifting capacity at chassis | 15,930 Kg |
| ...Lifting distance/height | 6 / 1.5 m |
| Maximum mining scope | 10,695 mm |
| Maximum digging depth | 6,990 mm |
| Bucket breakout force, SAE J1179 (normal) | 198 kN |
| Bucket digging force, SAE J1179 (boost) | 215 kN |
| Arm digging force, SAE J1179 (normal) | 196 kN |
| Arm digging force, SAE J1179 (supercharged) | 213 kN |
| Total width | 3,340 mm |
| Tail turning radius | 3,600 mm |
