Powerful and durable

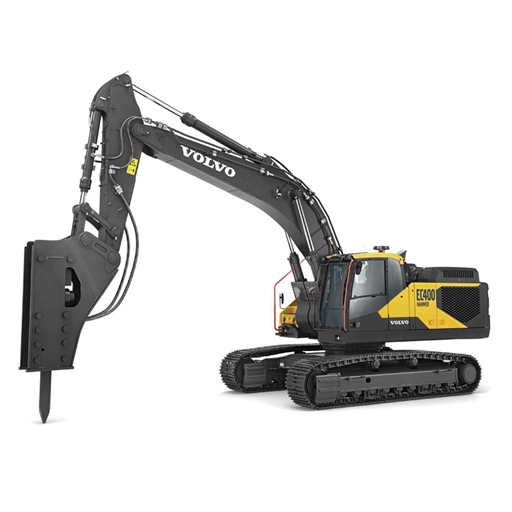

The EC400 breaker version is designed for breaker applications and has been reinforced to maximize stability and power. In addition to strong engine power, enlarged main pump and excellent cooling performance, it is also equipped with a 195 mm drill rod to cope with more severe working conditions.

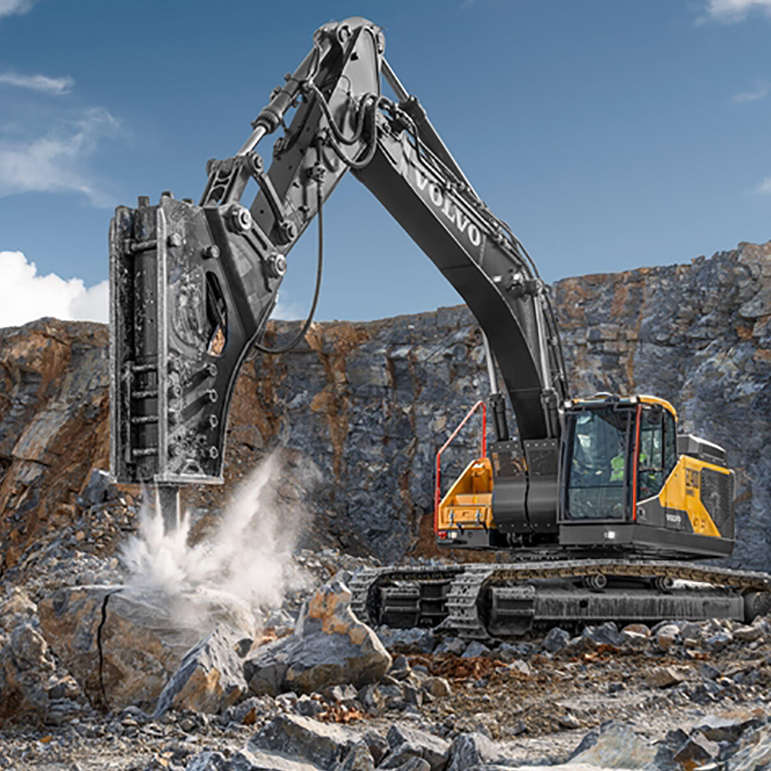

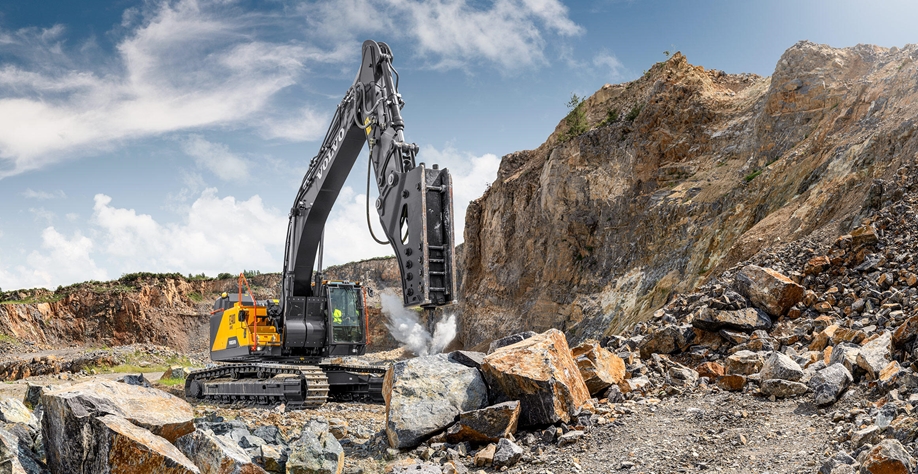

 Higher stability Discover how the rugged EC400 breaker version can handle the challenges of harsh working conditions. Designed specifically for breaker applications. |

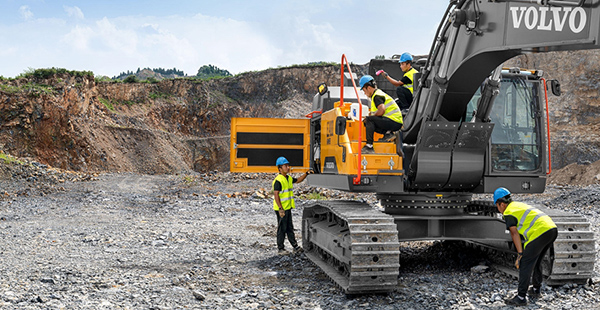

 Easy Choice EC400 breaker version features intelligent controls, easy maintenance and high fuel efficiency, ensuring longer uptime and lower maintenance costs. |

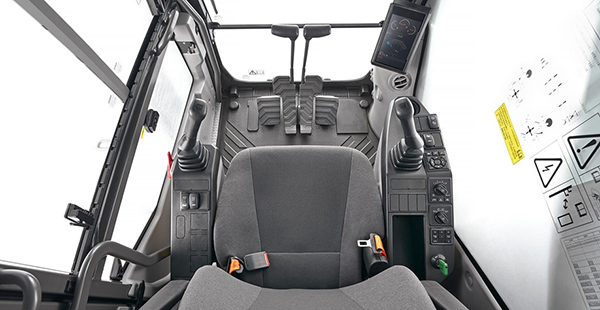

 Operational comfort The EC400 breaker version has a comfortable cab and a range of features that enhance the driver experience and help drivers realize their potential. |
| Working weight | 41,500 Kg |
|---|---|
| Total power | 253 kW |
| Maximum power speed | 1,600 rpm |
| Lifting capacity at chassis | 15,940 Kg |
| ...Lifting distance/height | 6 / 1.5 m |
| Maximum digging reach | 10,545 mm |
| Maximum digging depth | 6,785 mm |
| Bucket digging force, SAE J1179 (normal) | 198 kN |
| Bucket digging force, SAE J1179 (boosted) | 215 kN |
| Arm digging force, SAE J1179 (normal) | 195.9 kN |
| Arm digging force, SAE J1179 (pressurized) | 212.9 kN |
| Total width | 3,540 mm |
| Tail turning radius | 3,600 mm |
